Wearable 12-Lead ECG Monitoring System with Integrated IMU

01

Overview

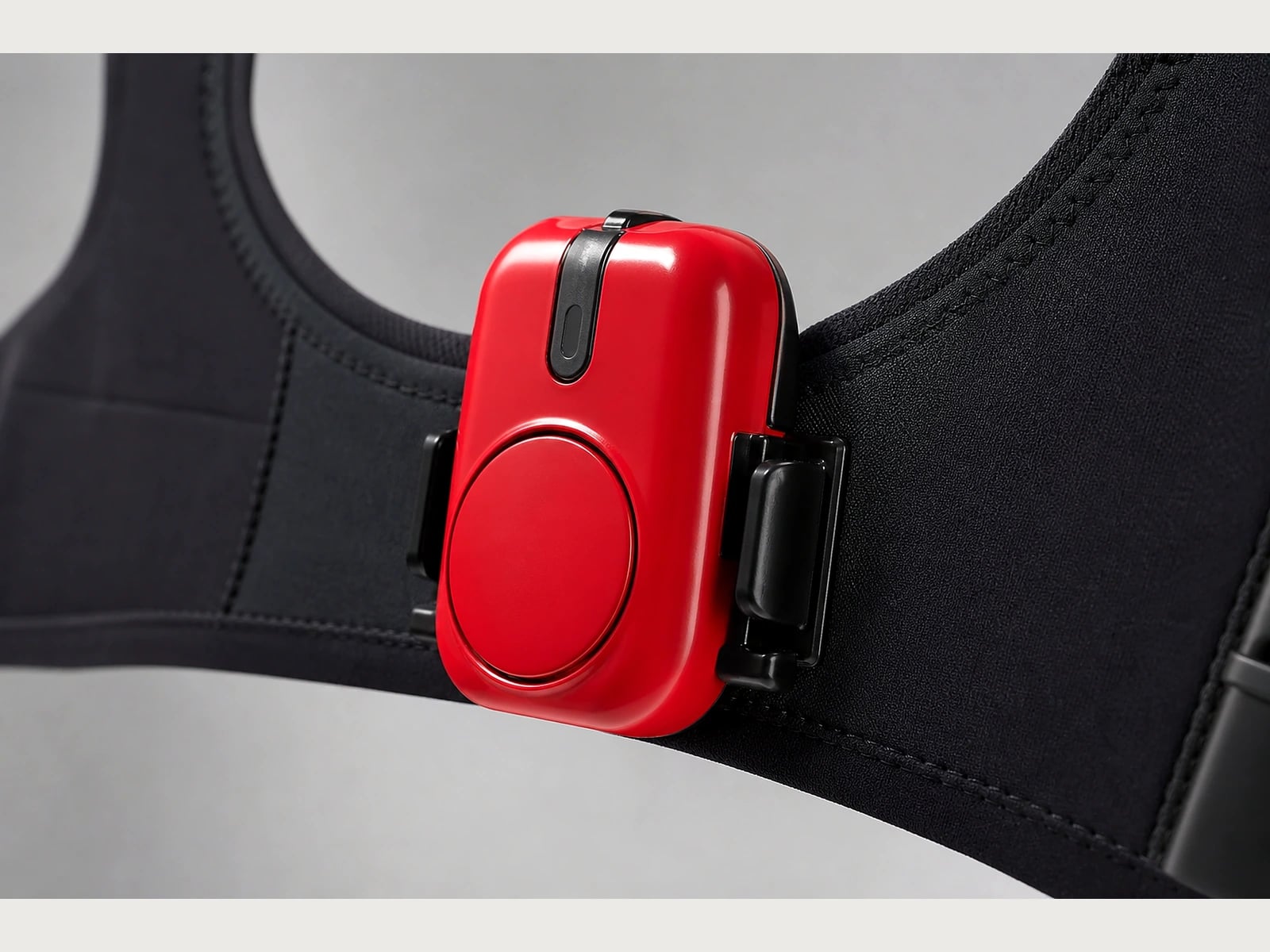

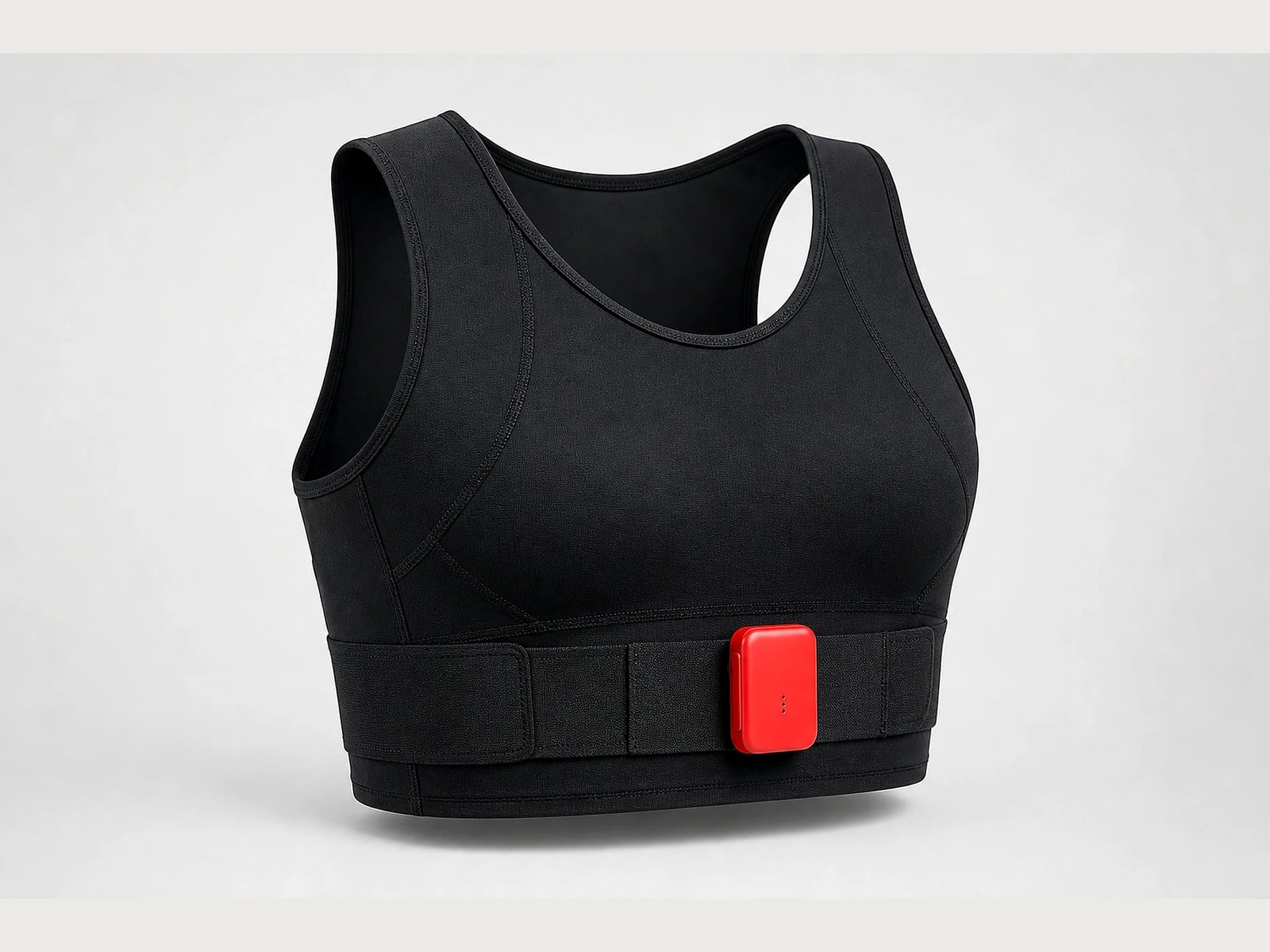

CoBuild Labs developed a clinical-grade wearable 12-lead ECG monitoring system integrated with an Inertial Measurement Unit (IMU) for continuous cardiac monitoring. Designed as a lightweight half-vest with a rear-opening chest strap, the battery-powered device enables comfortable long-duration monitoring while delivering high-fidelity ECG recordings and synchronized motion data. The platform is ideal for hospitals, clinical research, and remote patient monitoring.

02

The Challenge

Traditional 12-lead ECG systems rely on multiple cables and adhesive electrodes, making long-term monitoring uncomfortable and restricting patient mobility. The client required a wearable solution that could provide clinical-grade cardiac monitoring without compromising comfort or reliability. The key engineering challenges included:

• Designing a comfortable half-vest that could be worn for extended periods.
• Developing a rear-opening strap mechanism for quick and easy application by healthcare professionals.
• Maintaining consistent electrode contact during patient movement.
• Capturing high-quality 12-lead ECG signals in a wearable form factor.
• Integrating IMU sensing for synchronized motion and posture monitoring.
• Achieving continuous Bluetooth data streaming with minimal latency.
• Optimizing power consumption using ultra-low-power electronics for extended battery operation.
• Developing a lightweight and portable device suitable for hospital use.

03

Our Engineering Solution

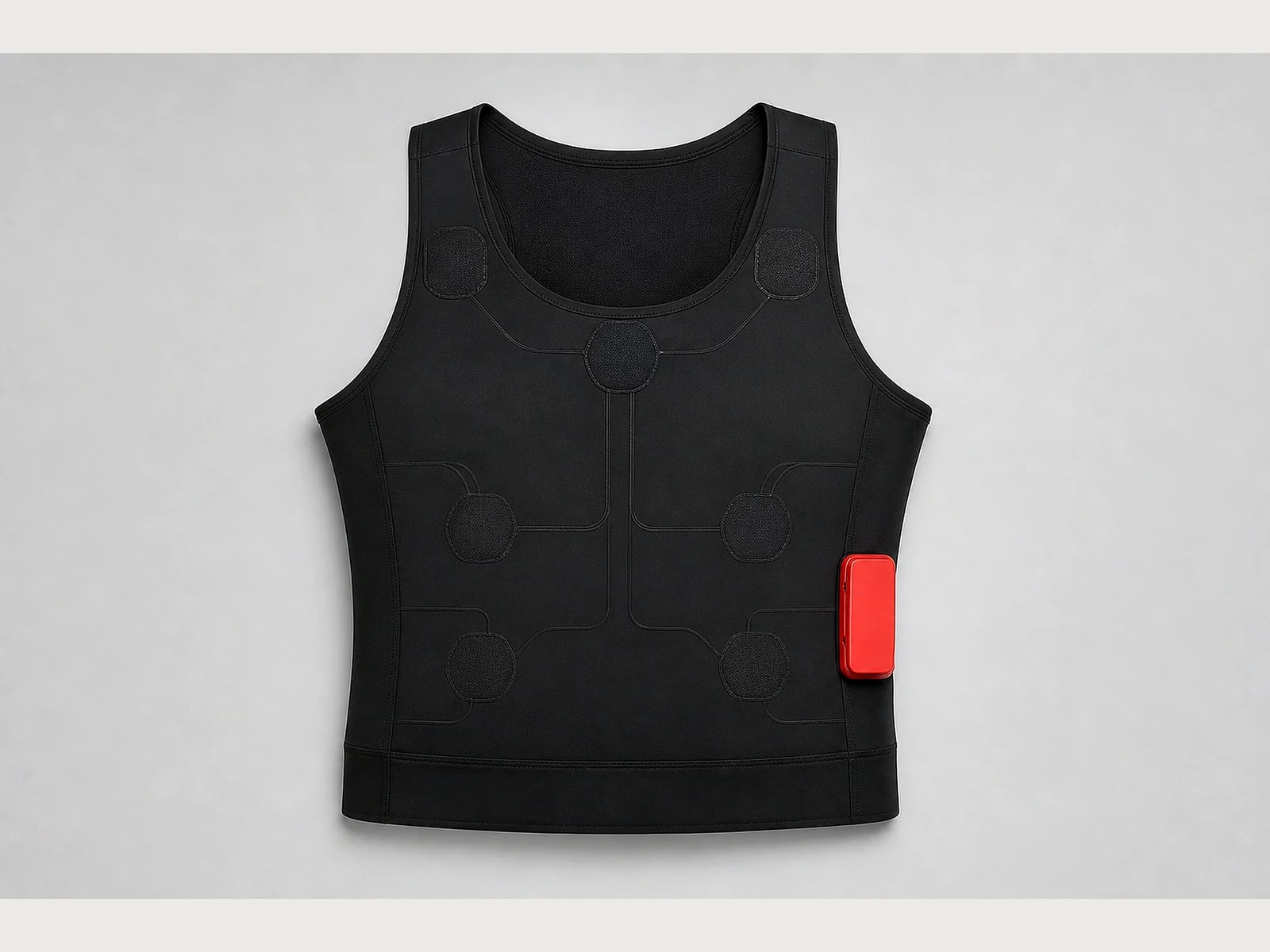

CoBuild Labs engineered the complete wearable cardiac monitoring platform, covering system architecture, electronics, embedded firmware, wearable design, and wireless communication. The solution combines a clinical-grade 12-lead ECG acquisition system with an integrated IMU inside a compact, battery-powered wearable. Designed for hospital and research environments, the half-vest offers excellent wearing comfort, secure electrode positioning, and reliable wireless streaming of synchronized physiological data to a host application.

• Clinical-grade 12-lead ECG acquisition in a wearable half-vest form factor.
• Integrated IMU for synchronized motion and posture monitoring.
• Rear-opening strap design for fast clinical application and secure electrode contact.
• Ultra-low-power electronics with continuous BLE telemetry.

04

Our Contribution

• Product architecture and system engineering
• Wearable half-vest and strap design
• Industrial design and ergonomic optimization
• Custom electronics and multilayer PCB design
• Low-noise ECG analog front-end development
• IMU integration
• Embedded firmware development
• Bluetooth Low Energy communication
• Biomedical signal acquisition and synchronization
• Ultra-low-power hardware optimization
• Prototype manufacturing and system validation

Technologies

Technologies used

Outcome

Results

• Successfully developed a wearable 12-lead ECG monitoring prototype.
• Delivered a comfortable, hospital-ready wearable with a rear-opening chest strap for quick application.
• Achieved synchronized ECG and IMU data acquisition for comprehensive cardiac monitoring.
• Enabled reliable wireless data transmission via Bluetooth.
• Created a scalable platform suitable for clinical studies, remote patient monitoring, and future commercial deployment.
